Toyota Corolla GR (2023-) CSF High-Performance Radiator

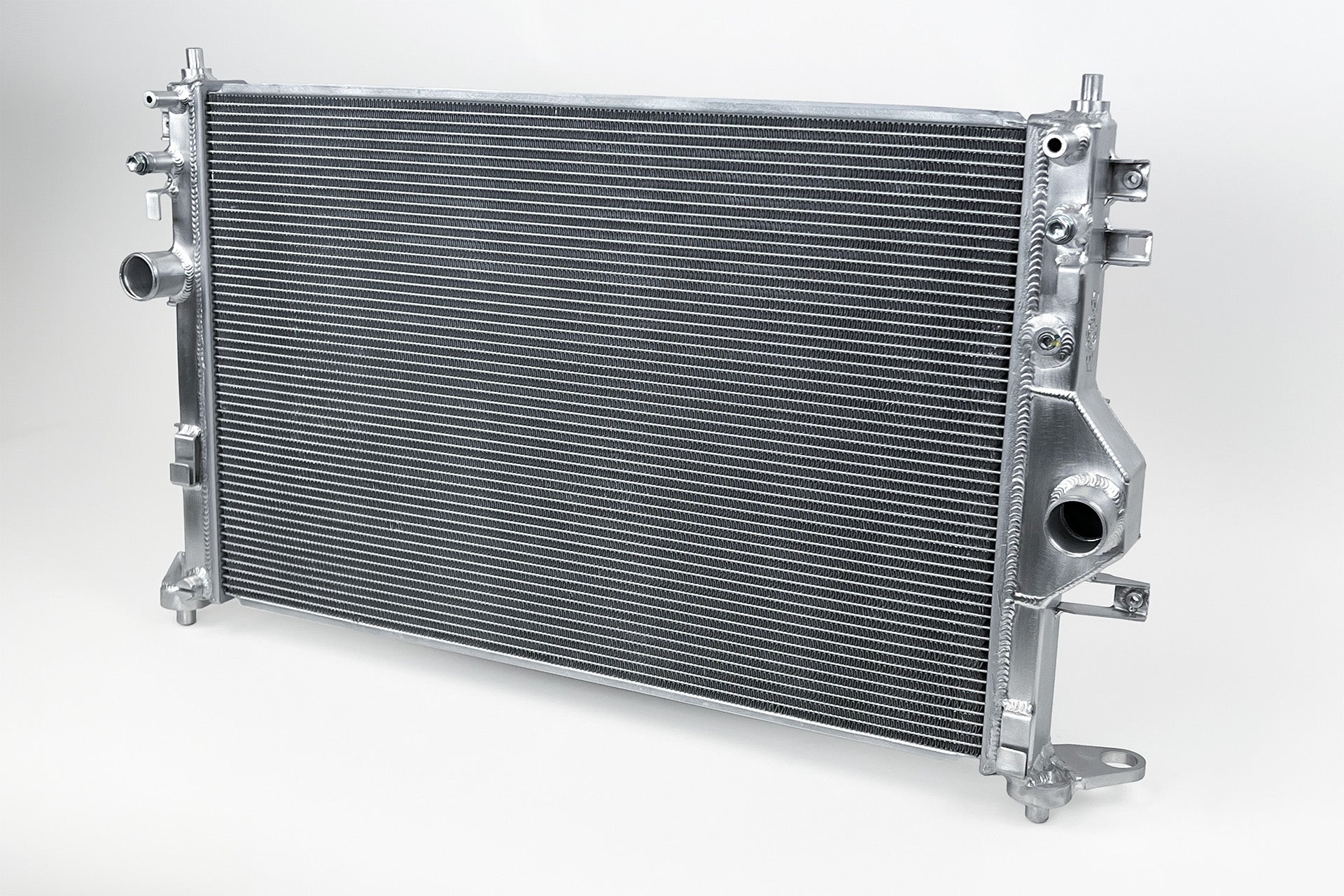

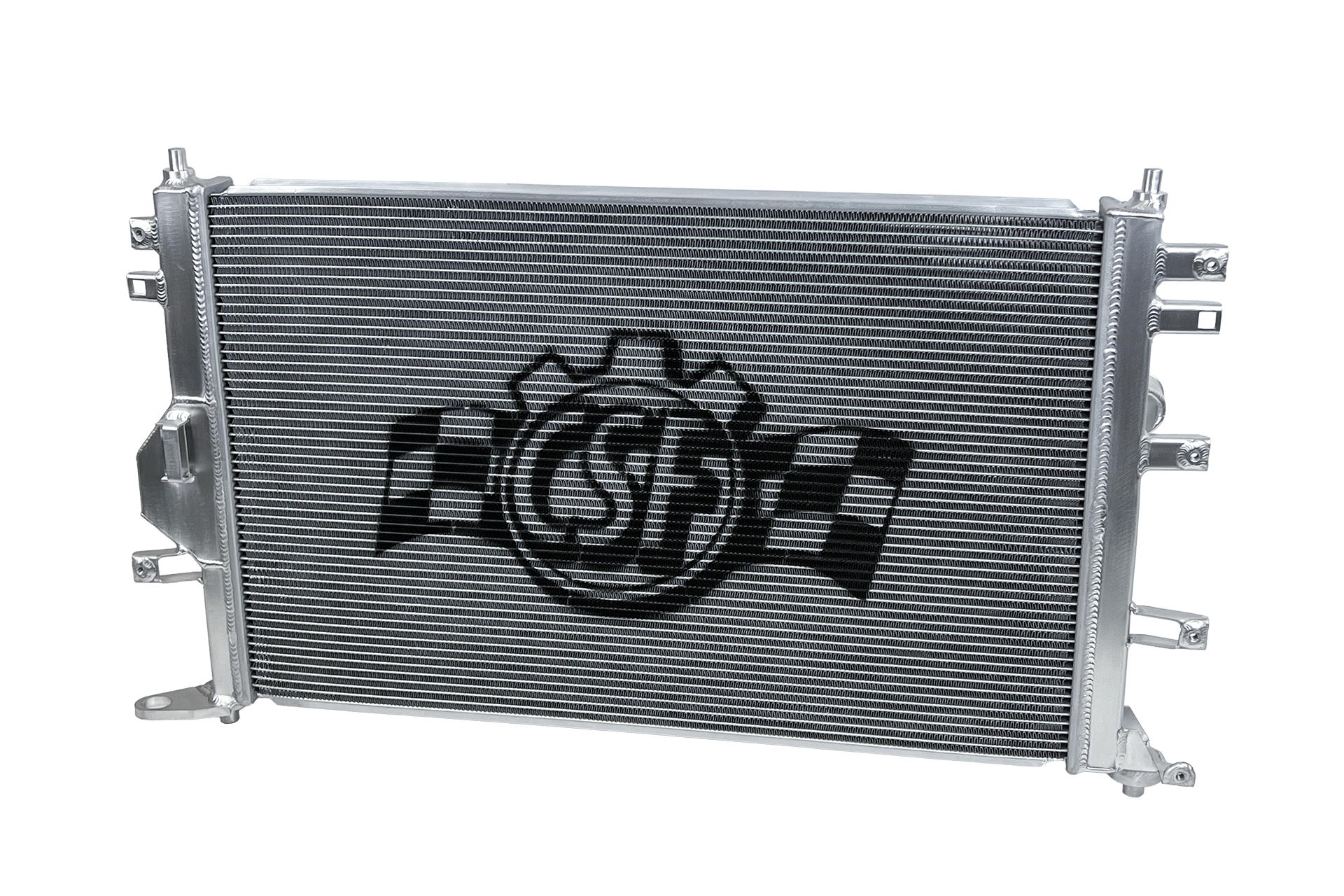

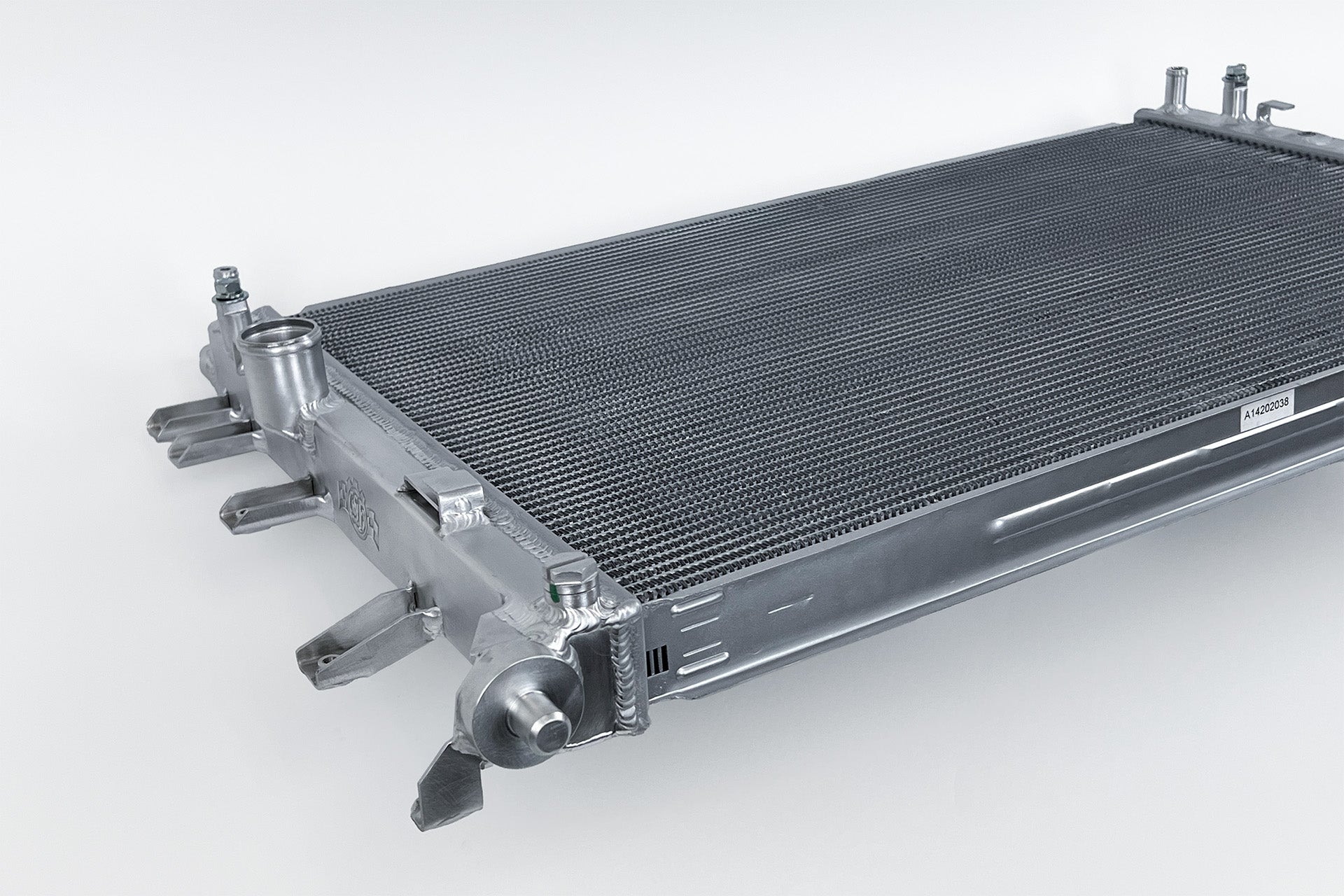

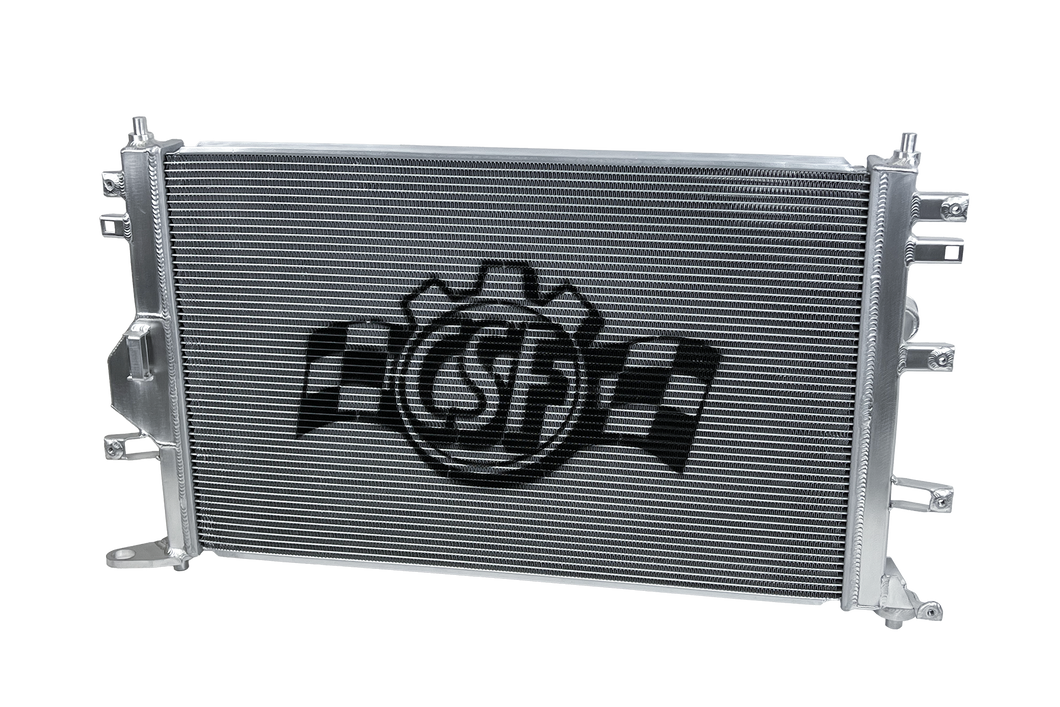

CSF High-Performance Radiator for Toyota GR Corolla & GR Yaris (Part No. 7233)

Description

Elevate your Toyota GR Corolla or GR Yaris’s cooling efficiency with the CSF High-Performance Radiator. Engineered for enthusiasts pushing their vehicles to the limit, this radiator addresses the shortcomings of the factory unit, ensuring optimal performance during spirited driving and track sessions.

Featuring a 2-row, 42mm core with CSF’s exclusive B-Tube Technology, this radiator offers approximately 15% more efficient heat transfer compared to standard designs. The 5mm tall multi-louvered fins maximize surface area contact, enhancing heat dissipation and ensuring consistent engine temperatures under load.

Constructed with 100% TIG-welded aluminum, including CNC-machined mounting brackets and OEM-style inlet/outlet, the radiator guarantees durability and a precise fit. The inclusion of a pre-plugged 1/8th NPT temperature sensor port and pre-installed foam strips further underscores its performance-oriented design.

Key Features

• Compatibility:

  • Toyota GR Corolla (2023+)

  • Toyota GR Yaris (2020+)

• Core Design:

  • 2-row, 42mm ultra-high-performance core

  • CSF B-Tube Technology for enhanced heat transfer

• Fin Design:

  • 5mm tall multi-louvered fins for maximum efficiency

• Construction:

  • 100% all-aluminum TIG-welded

  • CNC-machined brackets and OEM-style connections

• Additional Features:

  • Pre-plugged 1/8th NPT temp sensor port

  • Pre-installed foam sealing strips

  • Brushed satin finish

  • Direct drop-in fit — no modifications required

  • Individually leak and pressure tested

  • Backed by a 2-year limited warranty

Why Upgrade to the CSF Radiator?

• Enhanced Cooling Efficiency
  The OEM radiator’s single-row 27mm core is outmatched during hard use. CSF’s 42mm dual-row design improves capacity and heat transfer, ensuring stable engine temps under load.

• Superior Durability
  With aluminum end tanks replacing factory plastic, CSF’s construction resists fatigue, pressure, and heat better than OEM options.

• Plug-and-Play Fitment
  Engineered as a true drop-in replacement — no cutting, bending, or trimming required.

• Performance-Ready Design
  Accommodates larger intercooler piping (compatible with CSF x Jackson Racing kits) and includes features like foam-end sealing and sensor ports for complete thermal management.

Technical Specifications

OEM Reference Part Numbers

• GR Corolla: 16400-18060

• GR Yaris: 16400-18050

In the Box

• 1x CSF High-Performance Radiator (Part No. 7233)

• Pre-installed foam sealing strips

• 1x Pre-plugged 1/8th NPT temperature sensor port

• Installation guide
