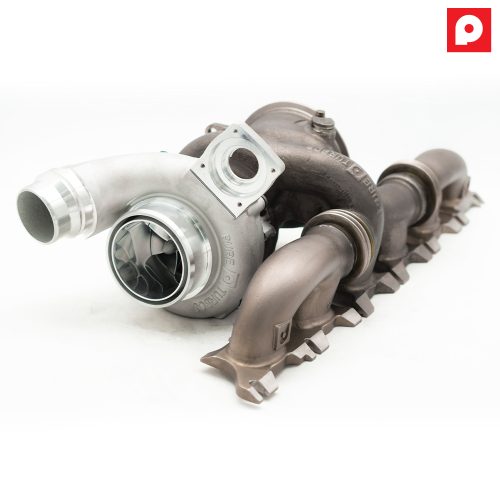

Toyota Supra (2019-2025) A90 New Pure900 6 Port

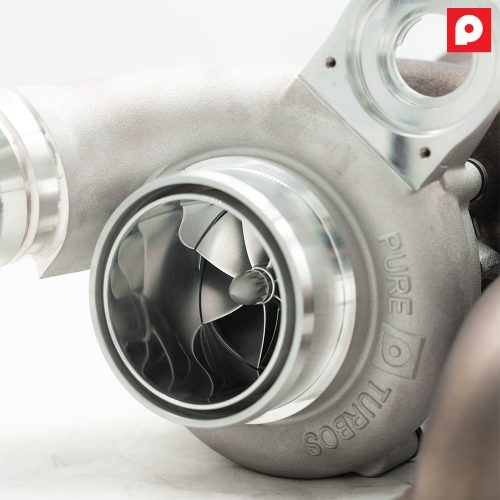

The Pure900 aftermarket turbo for the A90/A91 Toyota Supra boasts a Billet Compressor Wheel and upgraded bearing housing for increased durability and smoother performance. It also features a larger, improved-flowing turbine wheel and comes with a NEW aftermarket housing for easy plug & play installation. Custom tuning is required and this turbo is capable of supporting over 800 WHP, with a 1-year unlimited mileage warranty. This version is specifically designed for the 2020+ Toyota Supra equipped with the 3.0L B58 single-turbo inline-6 engine.

Installing your turbo

Check the operation of engine to make sure it meets manufacturer’s specifications. Change oil, oil filter and air filter. Replace the oil supply line in all petrol/race fuel applications. Clean line in diesel applications. Do not use a thread sealer (SILICONE) on any oil line. Check oil drain for restrictions to flow such as kinked or deteriorated rubber sections and sharp bends. On fresh, remanufactured engines and heads, flush all oil passages. If applicable check intercooler or after cooler for the same. Remove and thoroughly clean intercooler. Replace the air filter element. Check for flow restrictions, both intake and exhaust, including the catalytic converter. Check for and remove all foreign objects from the intake air tract and secure all hoses. Replace the oil and oil filter. Replace any crank case breather elements. Verify the actuator “C” clip is secure. Verify the oil drain direction is vertical. Verify the tightness of all clamps and bolts, secure lock tabs if applicable. After installation, be sure to remove all tools from the engine compartment. Before starting the engine, disable either the fuel or ignition system to allow the engine to be cranked without starting. The engine must be cranked until normal oil pressure is developed. Once oil pressure is achieved you may start the engine. Repeat after all oil changes.
