034 Motorsport - (HPFP) High Press Fuel Pump Upgrade - Audi B8/C7 3.0 TFSI Supercharged - 034-106-6052.

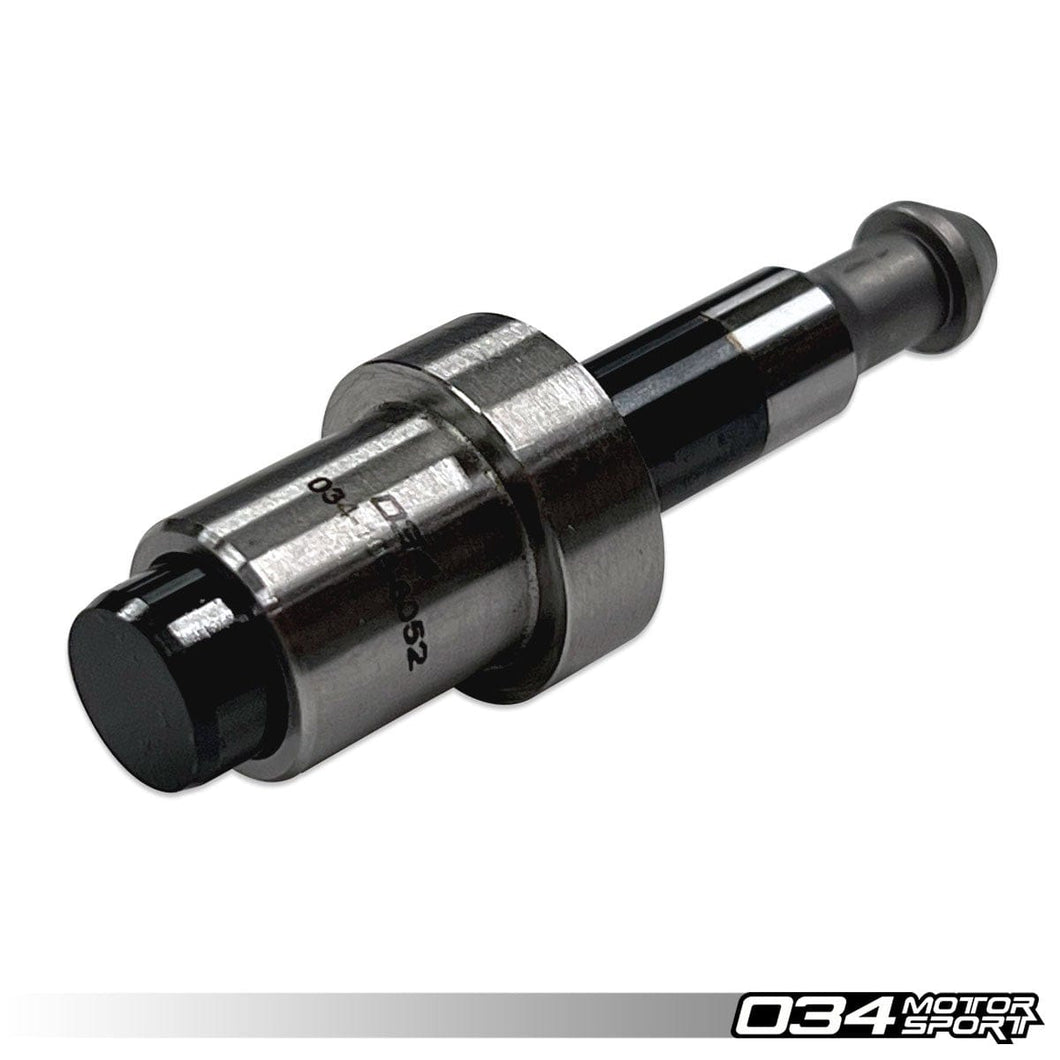

The 034 Motorsport High Pressure Fuel Pump Piston Upgrade Kit is designed to be a drop-in replacement piston for the factory high pressure fuel pump for the the 3.0 TFSI Supercharged equipped B8/B8.5 Audi S4/S5/Q5 and C7 Audi A6/A7.
This also fits the 2.0 TSI engines in the B8 Audi A4 & A5 and the 2.5 TFSI Inline 5 found in the 8J Audi TTRS.
* does not fit 2.0 TFSI B8.5 which is EA888.3
Unlock up to 50% more flow over the factory high pressure fuel pump, allowing the fuel system to meet the higher demands for ethanol, race gas, more pump gas, and pairs perfectly with all Dynamic+ ECU software that requires an upgraded High Pressure Fuel Pump!
By upgrading the factory high pressure fuel pump with the 034 Motorsport High Pressure Fuel Pump Piston Upgrade Kit, 2.0TSI, 2.5TFSI, 3.0TFSI Supercharged, the factory fuelling limits are raised by up to 50% in 2.0T, 2.5T, or 3.0T engines. This increased flow allows the fuel system to meet the higher demands for ethanol, race gas, more pump gas, and pairs perfectly with all Dynamic+ ECU software that requires an upgraded High Pressure Fuel Pump!
FEATURES:
- Yields up to 50% Flow Increase Over the Factory High Pressure Fuel Pump
- Raises the Factory Fueling Limits Present in 2.0T, 2.5T, and 3.0T Engines
- Increased Flow to Meet the Demands of E85 Optimized Tunes
- Required for Most Stage 2+ Performance Software
- Fuel Pump Internals Precision-Machined to Aerospace Tolerances
- DLC Coated Piston and Cylinder for Reduced Friction and Increased Performance
- Matched Piston and Cylinder for Absolute Precision
WHATS INCLUDED:
- 1x Pump Piston & Cylinder Set
Make | Model | Years | Chassis | Engine | Note |
Audi | A4 | 2009-2013 | B8/B8.5 | 2.0 TFSI | - |
Audi | A5 | 2008-2013 | B8/B8.5 | 2.0 TFSI | - |
Audi | A6 | 2005-2011 | C6 | 3.0 TFSI | - |
Audi | A6 | 2012-2018 | C7/C7.5 | 2.0 TFSI | - |
Audi | A6 | 2012-2018 | C7/C7.5 | 3.0 TFSI | - |
Audi | A7 | 2012-2018 | C7/C7.5 | 3.0 TFSI | - |
Audi | A8 | 2011-2018 | D4 | 3.0 TFSI | - |
Audi | Allroad | 2010-2016 | B8/B8.5 | 2.0 TFSI | - |
Audi | Q7 | 2011-2015 | 4L | 3.0 TFSI | - |
Audi | RS3 | 2011-2013 | 8P | 2.5 TFSI | - |
Audi | RS6 | 2012-2018 | C7/C7.5 | 4.0 TFSI | Requires 2 piston upgrade kits |
Audi | RS7 | 2012-2018 | C7/C7.5 | 4.0 TFSI | Requires 2 piston upgrade kits |
Audi | S4 | 2010-2017 | B8/B8.5 | 3.0 TFSI | - |
Audi | S5 | 2008-2017 | B8/B8.5 | 3.0 TFSI | - |
Audi | S6 | 2012-2018 | C7/C7.5 | 4.0 TFSI | Requires 2 piston upgrade kits |
Audi | S7 | 2012-2018 | C7/C7.5 | 4.0 TFSI | Requires 2 piston upgrade kits |
Audi | Q5 | 2012-2017 | B8/B8.5 | 3.0 TFSI | - |
Audi | TTRS | 2012-2013 | 8J | 2.5 TFSI | - |
