034-108-1023 - 034Motorsport P34 COLD AIR INTAKE, AUDI B9 A4/A5 2.0 TFSI

034 Motorsport - P34 COLD AIR INTAKE, AUDI B9 A4/A5 2.0 TFSI - EA888.3.

Significant effort went into developing this comprehensive performance intake solution for the longitudinal EA888 2.0T Gen 3 engine found in the latest generation Audi B9 A4/A5/allroad. Subsequently, the P34 Cold Air Intake System offers discerning enthusiasts measurable increases in horsepower and torque, sporty induction and turbocharger sounds, and a beautiful airbox design.

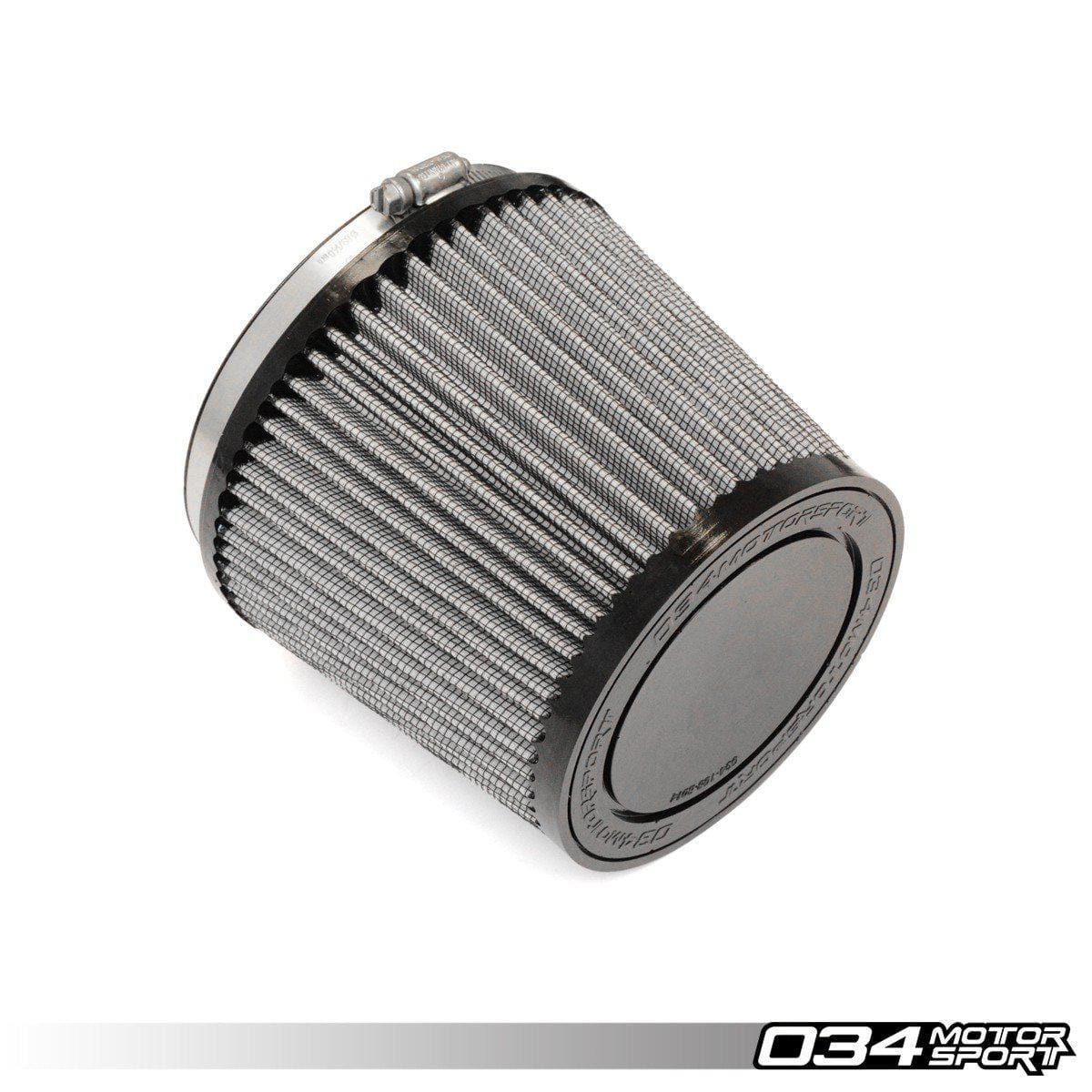

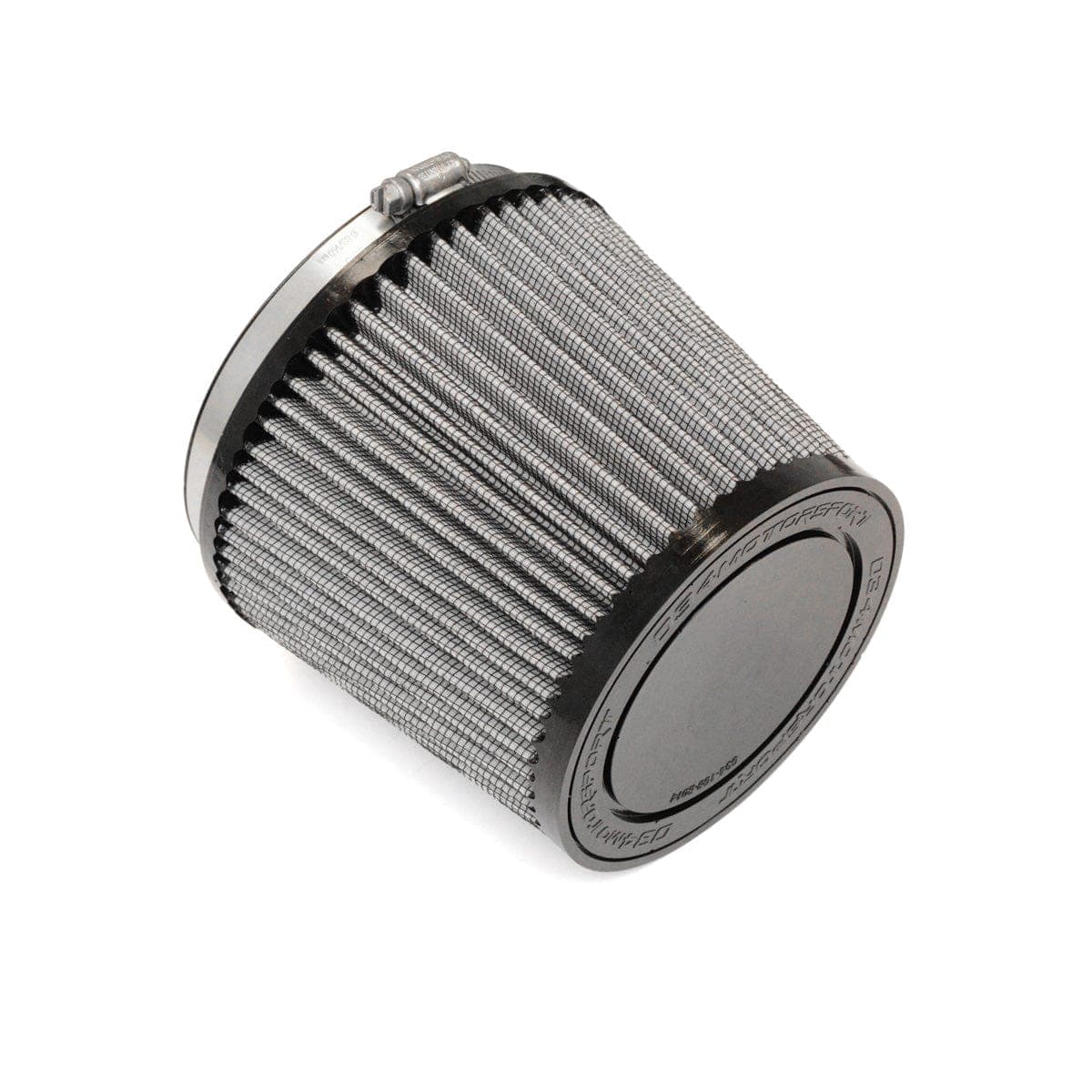

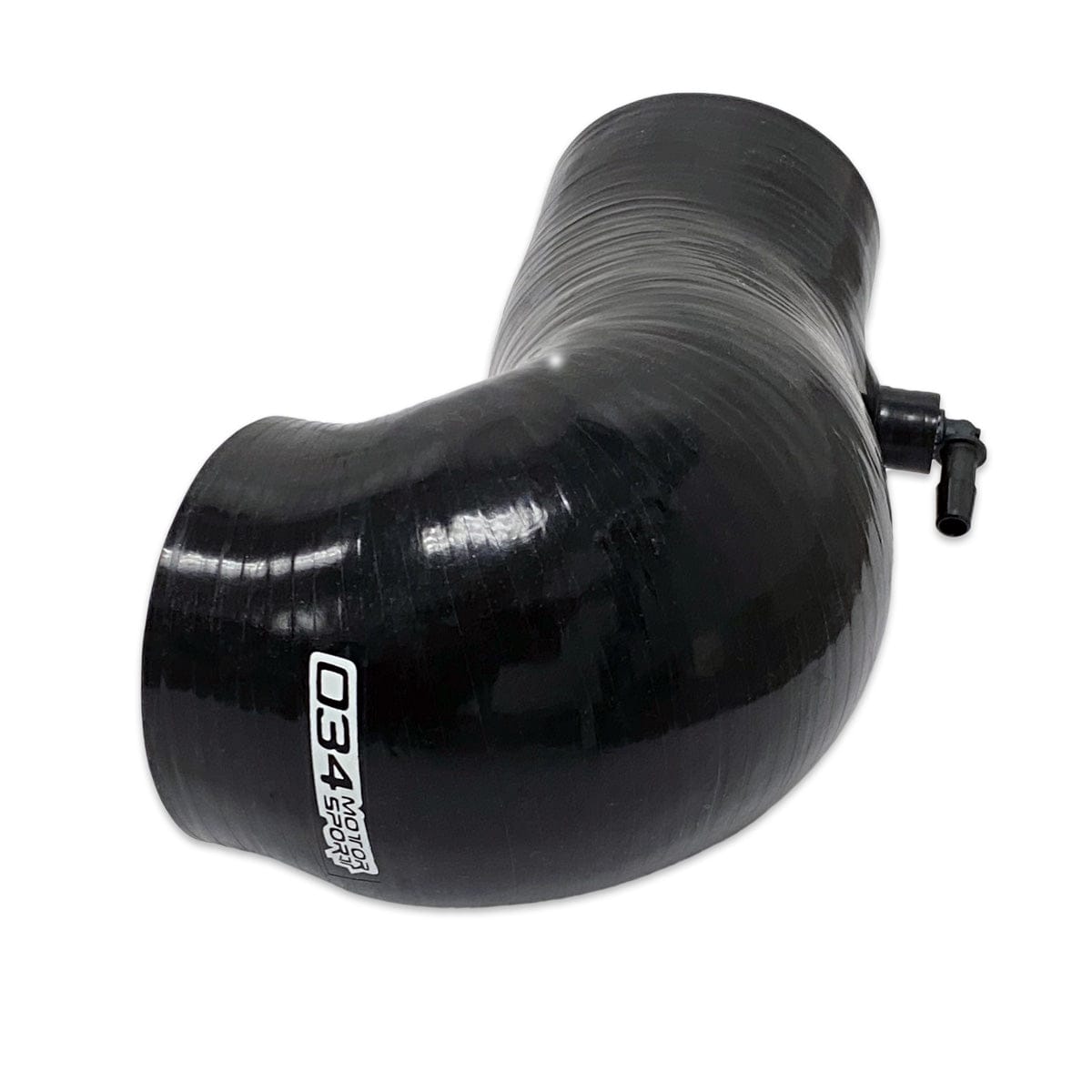

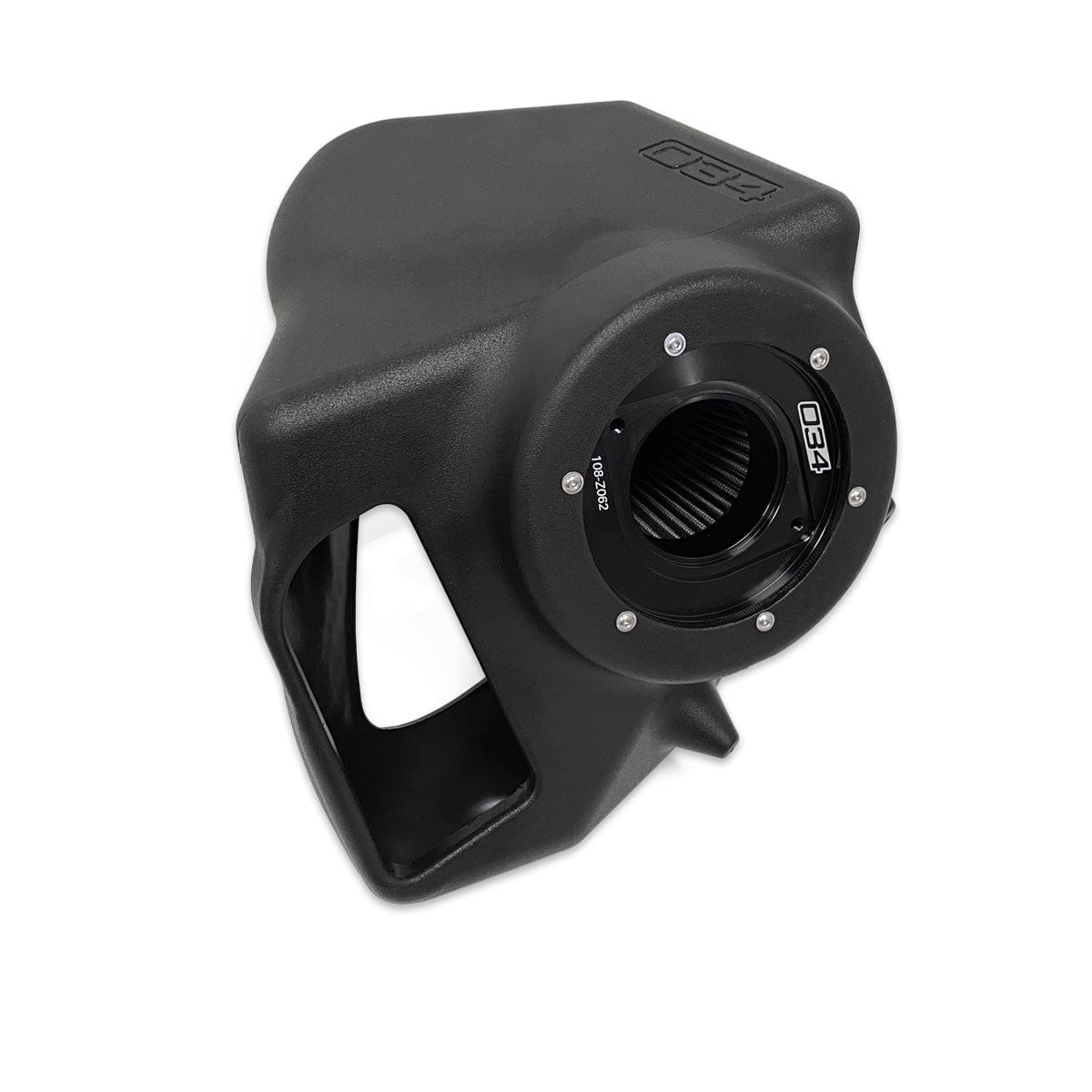

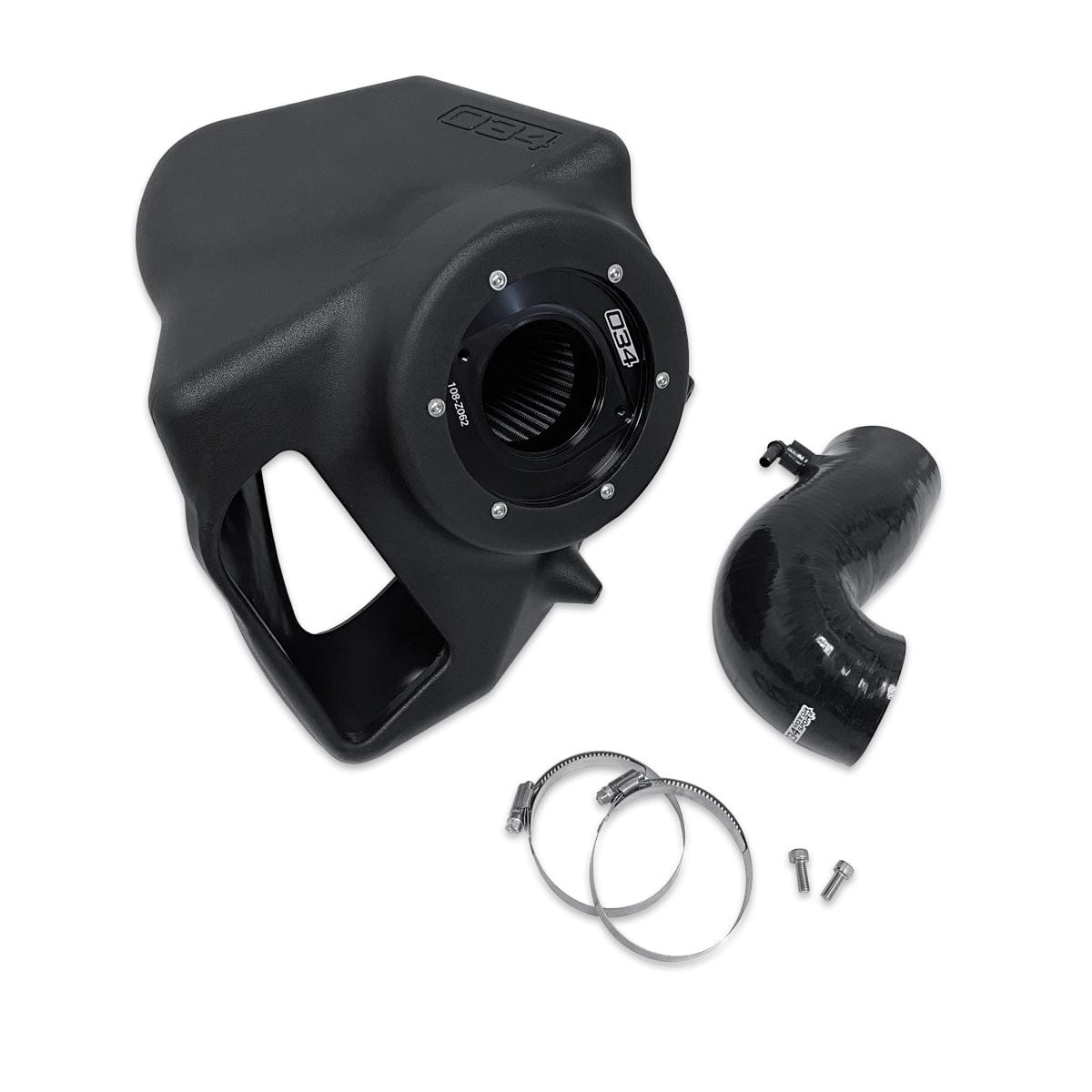

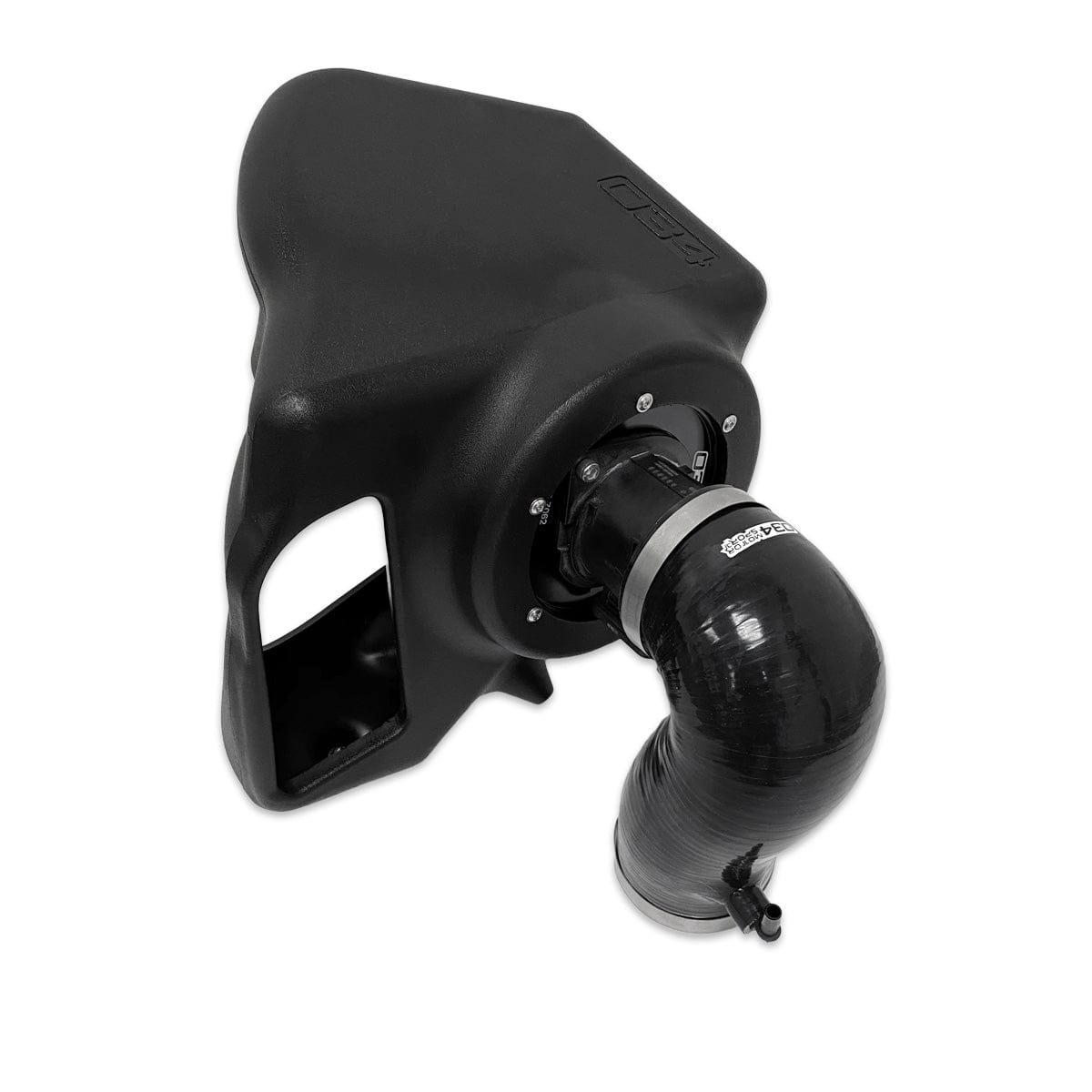

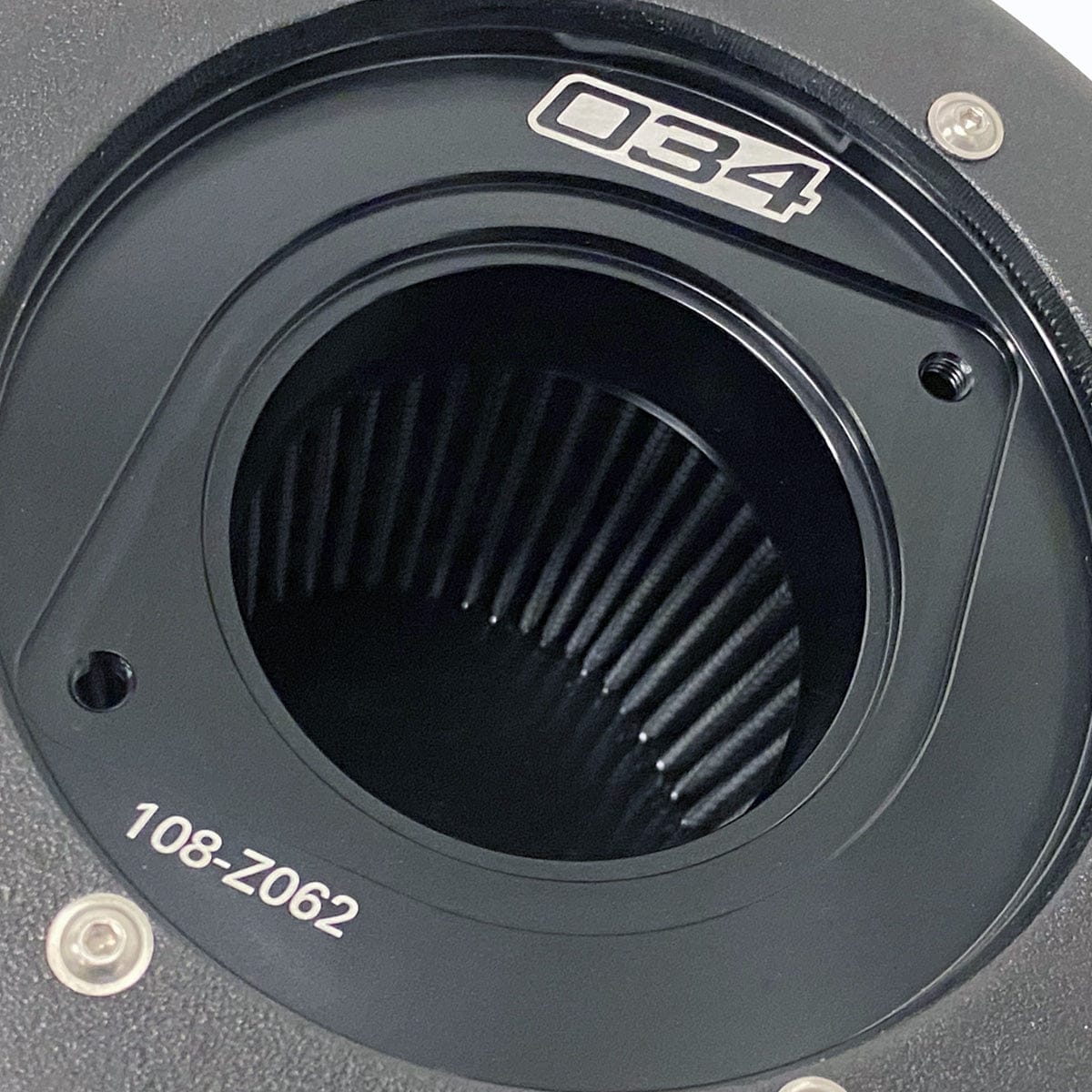

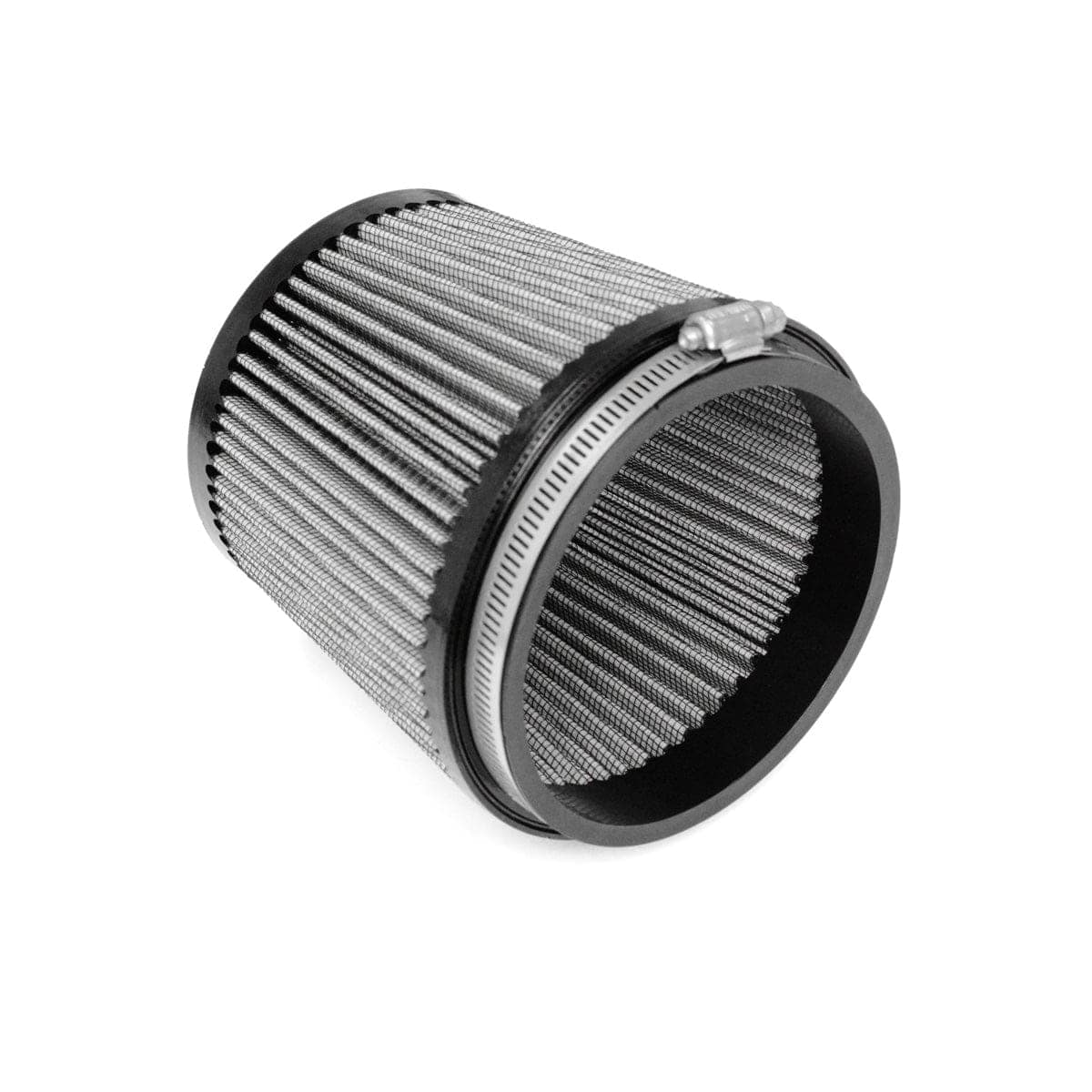

Throughout the development process, multiple designs were modeled, prototyped, and tested - all to ensure that the P34 Cold Air Intake System delivers measurable performance benefits and superb fitment. The result is a partially-enclosed airbox which uses the factory fresh air inlet duct and heat shield, while housing a massive 5" inlet conical air filter, and a CNC-machined billet aluminum velocity stack feeding through the factory MAF sensor to a reinforced silicone turbo inlet pipe.

Fitment Notes:

• The 034 Motorsport P34 Cold Air Intake is only for vehicles with a MAF attached directly to the factory airbox.

PEAK HORSEPOWER & TORQUE

• Stock Intake: 253 Horsepower / 270 Foot-Pounds of Torque
• P34 Intake: 262 Horsepower / 274 Foot-Pounds of Torque

PEAK GAINS IN HORSEPOWER & TORQUE

• Peak Horsepower Gain: 10 HP @ 6,100 RPM
• Peak Torque Gain: 8 FT-LBS @ 6,100 RPM

PRESSURE DROP REDUCTION

• Stock Intake: Peak Pressure Drop of 0.58 PSI at 6,300 RPM
• P34 Intake: Peak Pressure Drop of 0.10 PSI at 6,300 RPM
